Description

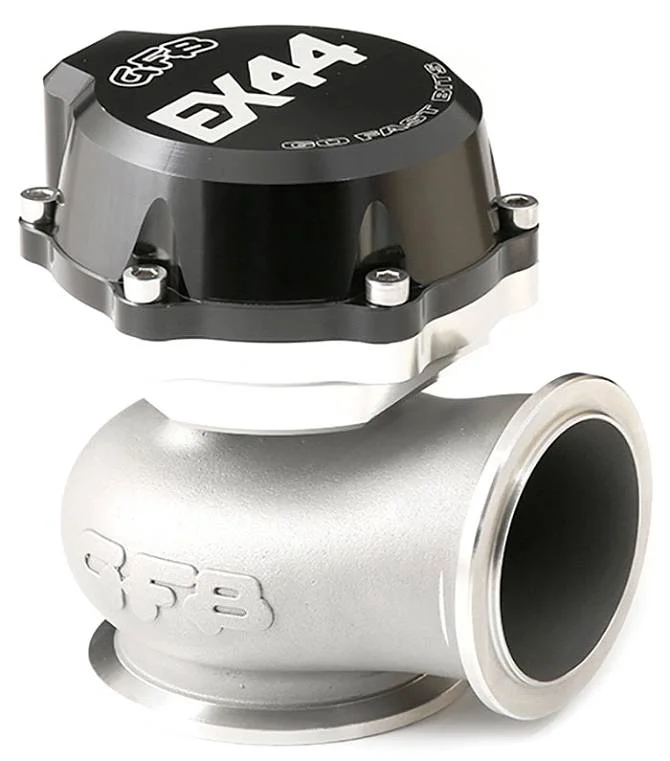

EX 44mm wastegate: The 7002 wastegate features an investment cast body made from 253MA chromium-nickel stainless steel, a one-piece stainless steel valve, and a nomex reinforced diaphragm to cope with the extreme conditions and harsh environment of high-boost and exhaust temperatures. ? 44MM VALVE, ? V-BAND INLET AND OUTLET (DIRECTLY COMPATIBLE WITH TIAL MV-R FLANGES), ? 100MM OVERALL HEIGHT, ? ADDITIONAL SPRING AVAILABLE SEPARATELY IS 7PSI (MIDDLE), ? SUPPLIED WITH 10PSI (OUTER) SPRING AND 5PSI (INNER) SPRINGS ? USE SEPARATE OR TOGETHER FOR BASE BOOST PRESSURES OF 5, 10, OR 15PSI, ? COMBINE SPRINGS TO ACHIEVE BASE BOOST PRESSURES OF 5, 7, 10, 12, 15, 17 AND 22PSI, MOST COMPACT WASTEGATE RANGE ON THE MARKET
BODY, VALVE, SEAT AND ALL MOUNTING HARDWARE IS CNC MACHINED FROM HIGH-TEMP STAINLESS STEEL
ACTUATOR HOUSING CNC MACHINED FROM BILLET 6061-T6 ALUMINIUM
NOMEX-REINFORCED SILICONE DIAPHRAGM INTERNAL SHROUD PROTECTS VALVE STEM FROM EXCESSIVE HEAT AND PREVENTS CARBON-RELATED STICKING
V-BAND CLAMP MOUNTING SYSTEM
Manufactured In Australia under ISO 9001
